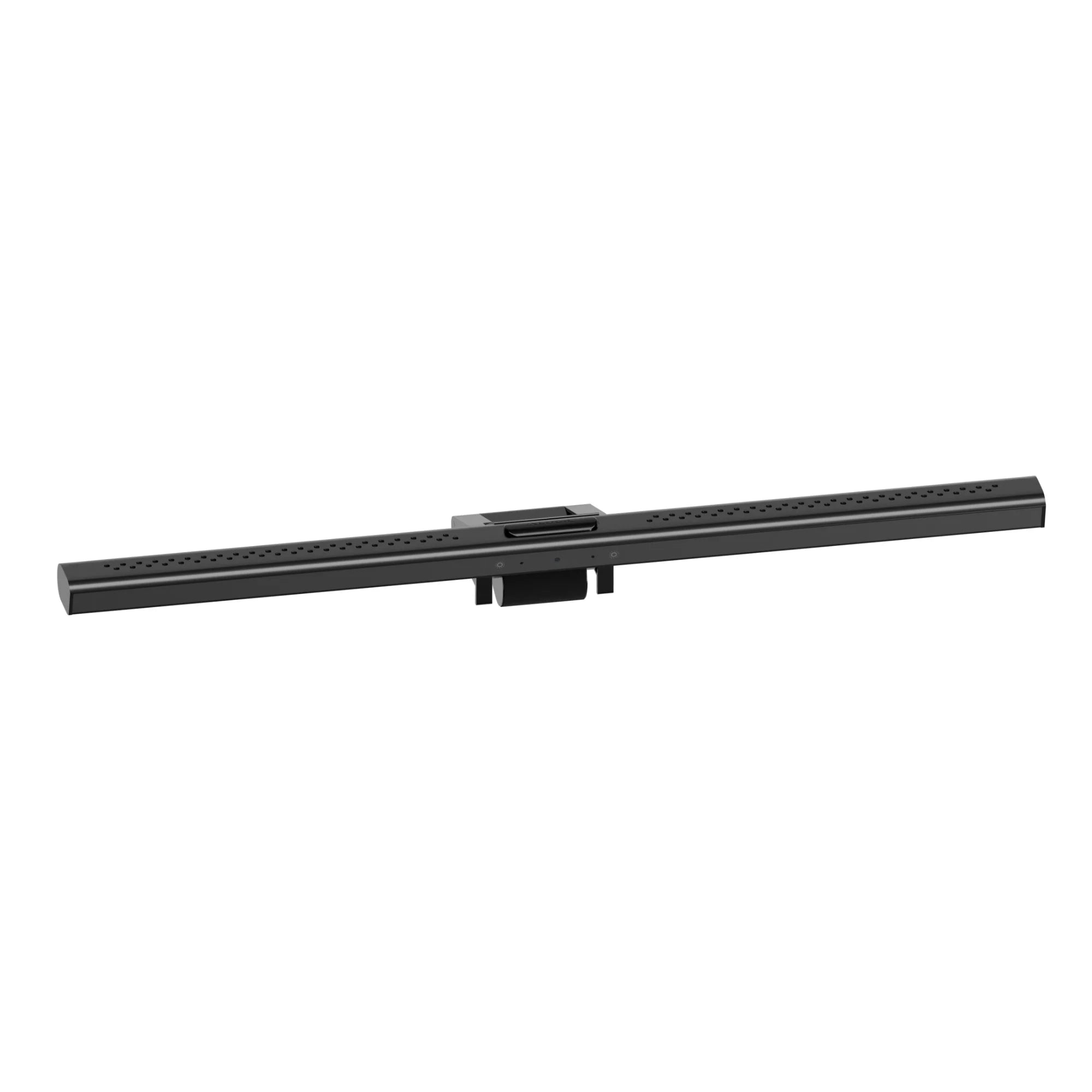

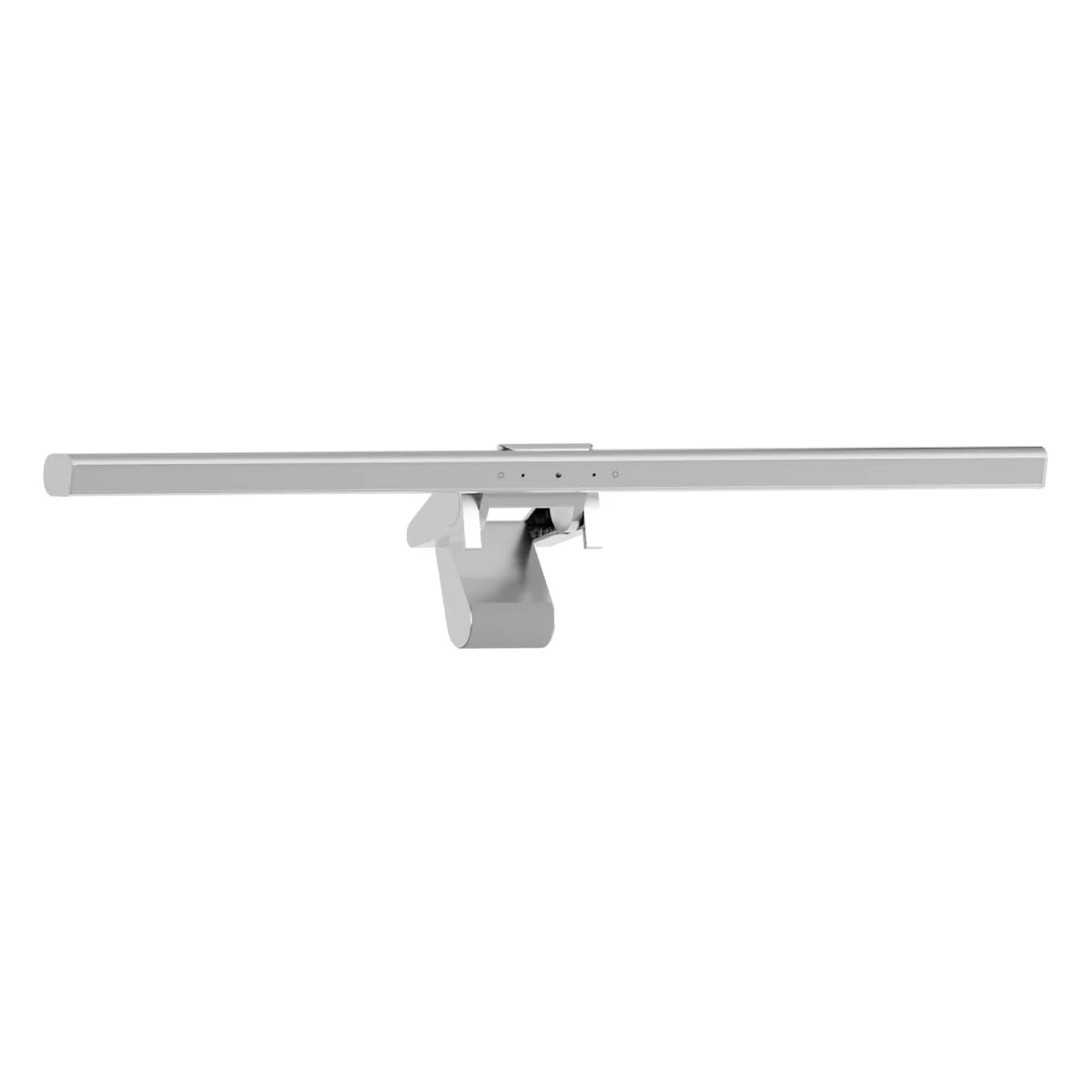

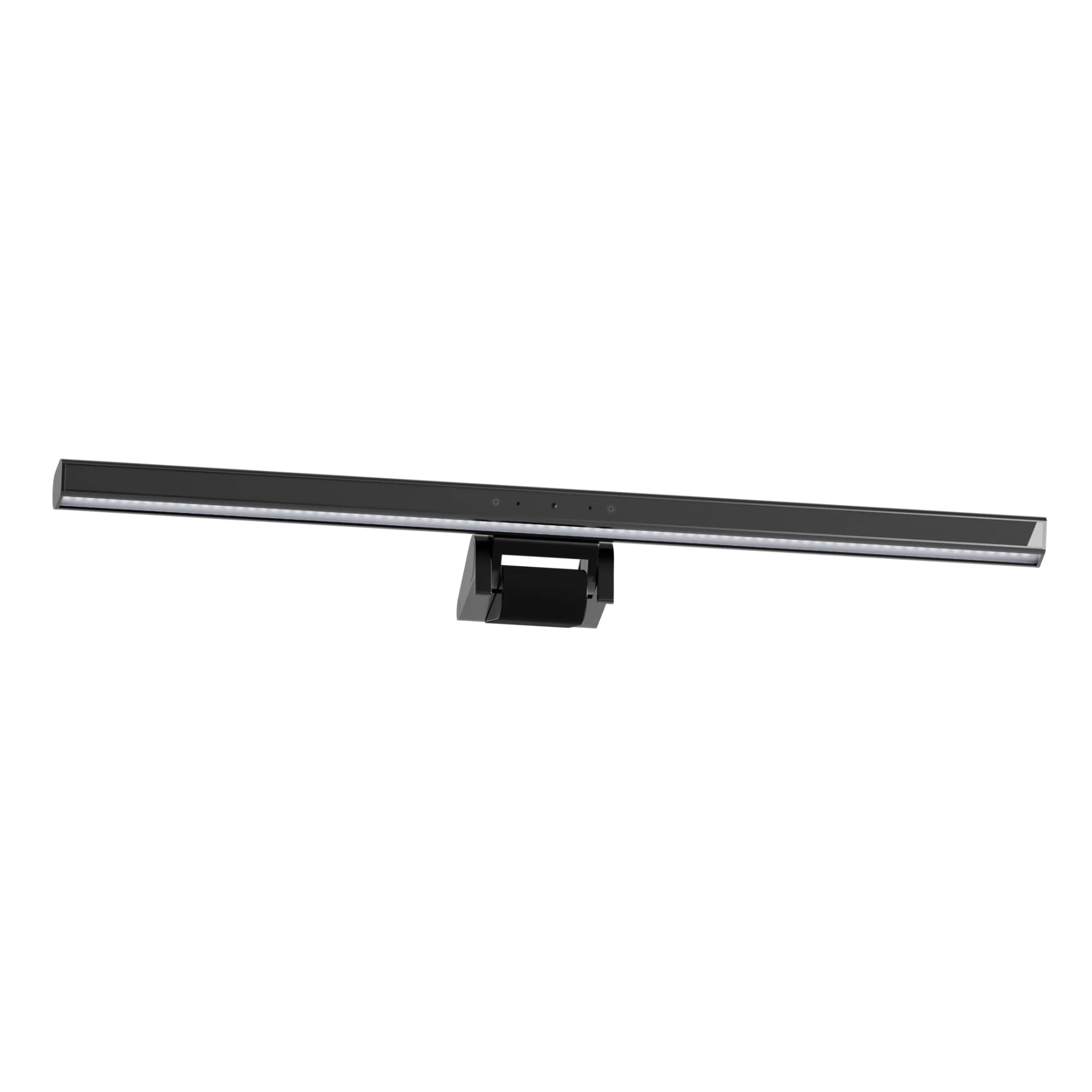

Illuminate USB-C Light Bar with 4K Webcam

What resolution is Illuminate’s camera?

Illuminate has a 12MP webcam sensor, which roughly corresponds to a 4K resolution (4000x3000).

It outputs the following resolutions and framerates at 16:9 aspect ratio: 4k 30 FPS, 1080p 60 FPS, 1080p 30 FPS, 720p 60 FPS

What colour temperatures can I set Illuminate’s Light Bar to?

Illuminate’s light bar can be adjusted between a warm 2,800K and a more neutral 6,500K.

Using the remote control, you can dial into your preferred temperature between these values, while by tapping the Colour Temperature button on the lightbar itself, you can quickly switch between three presets: 1. 2,800K (Warm) 2. 4,500K (Balanced) 3. 6,500K (Neutral)

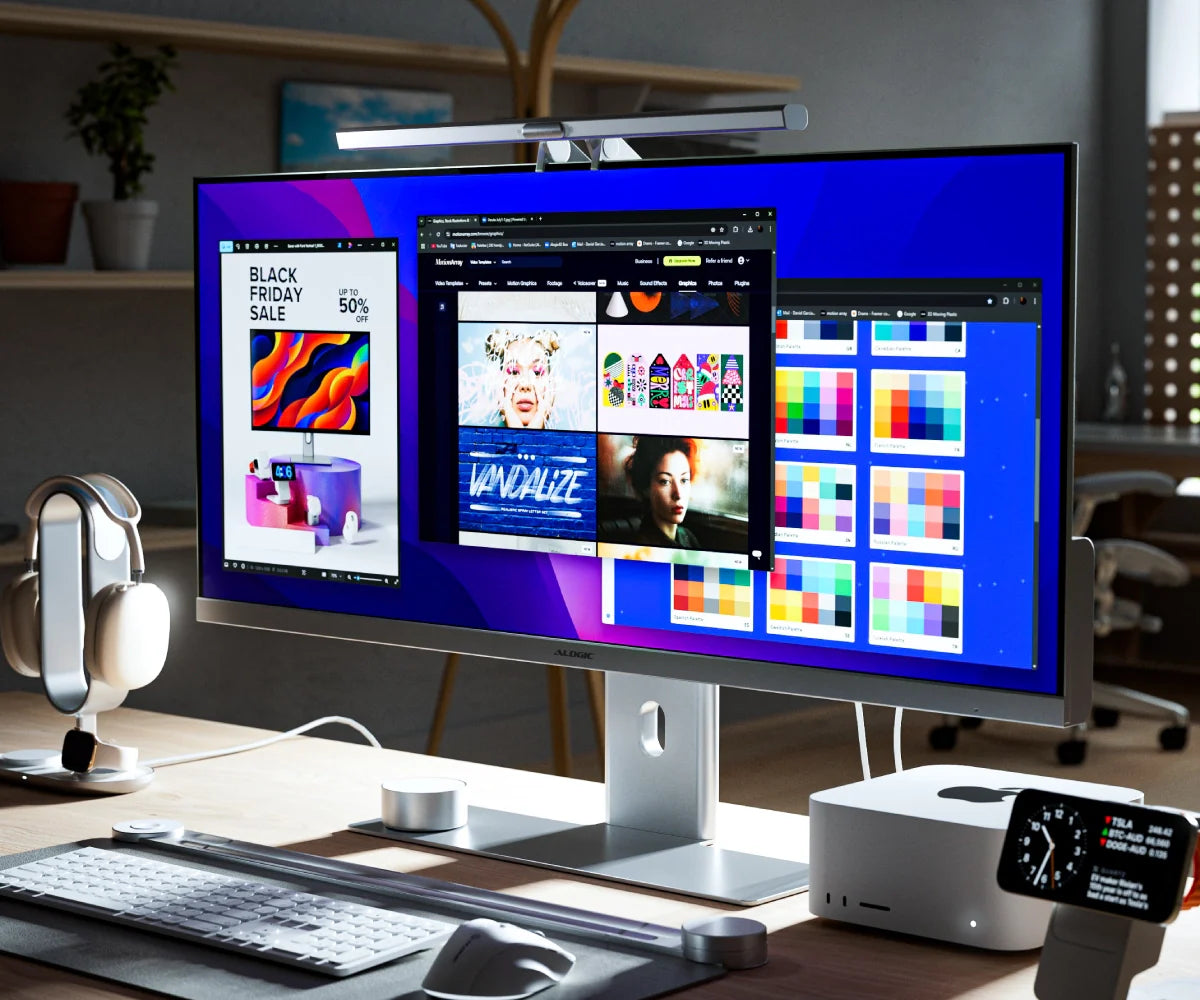

Illuminate is ‘Designed for Edge’. Does it still work with other monitors?

Absolutely.

Illuminate can be used with any monitor that is between 8-30mm thick at the top and has an available USB-A or USB-C port that can supply 5V (5V/1A) of power and supports USB 2.0 (or newer) data transfer.

Can I use Illuminate with USB-A ports, or just USB-C?

Illuminate can be used with either a USB-A or USB-C port, as long as it supports 5V (5V/1A) of power and USB 2.0 (or newer) data transfer.

We recommend consulting the product’s user manual, or the manufacturer’s website to make sure your port supports Illuminate before purchase.

Illuminate does not include a USB-C to USB-A cable, but is compatible with USB-C to USB-A adapters (such as theUltra USB-A to USB-C Mini Adapter ) or any USB-C to USB-A cables.

Does the webcam with work Microsoft Teams/Slack/Zoom?Illuminate’s webcam is compatible with all programs that work with standard laptop or USB-C webcams, including all popular video conference platforms.

My webcam looks blurry, with a blue tint!

If Illuminate’s webcam looks blurry, or seems to have a blue tint to it, you may not have removed the protective film.

Check your webcam – there should be a little tab you can pull off. If there isn’t a tab, look closely at the camera and try rubbing one of the sides to see if there’s still a plastic film – sometimes the pull tab can get stuck inside the camera itself.

If you’re sure there’s no film and your camera remains either blurry or blue-tinted, please get in touch with our support team: support.usa@alogic.co

My light bar is turning off at maximum brightness!

If Illuminate is turning off when it hits max brightness, this indicates Illuminate is not receiving enough power.

Ensure the port can supply at least 5W of power – not all laptop or computer monitor ports support this. We recommend consulting the product’s user manual, or the manufacturer’s website.

My webcam isn’t working!

If Illuminate’s webcam “Alogic Illuminate Webcam” does not appear in the list of connected cameras, ensure the USB port you’ve connected Illuminate to supports USB 2 data. We recommend consulting the product’s user manual, or the manufacturer’s website to double check the ports support USB 2.0 data transfer.

The remote control isn’t responding!

If your remote dial is unresponsive, tap and hold both ‘buttons’ on the remote for a second to wake it up out of standby mode.

If the remote still doesn’t respond, try leaving it to charge for an hour.

If this does work, please contact support.usa@alogic.co and we’ll help you get things sorted.

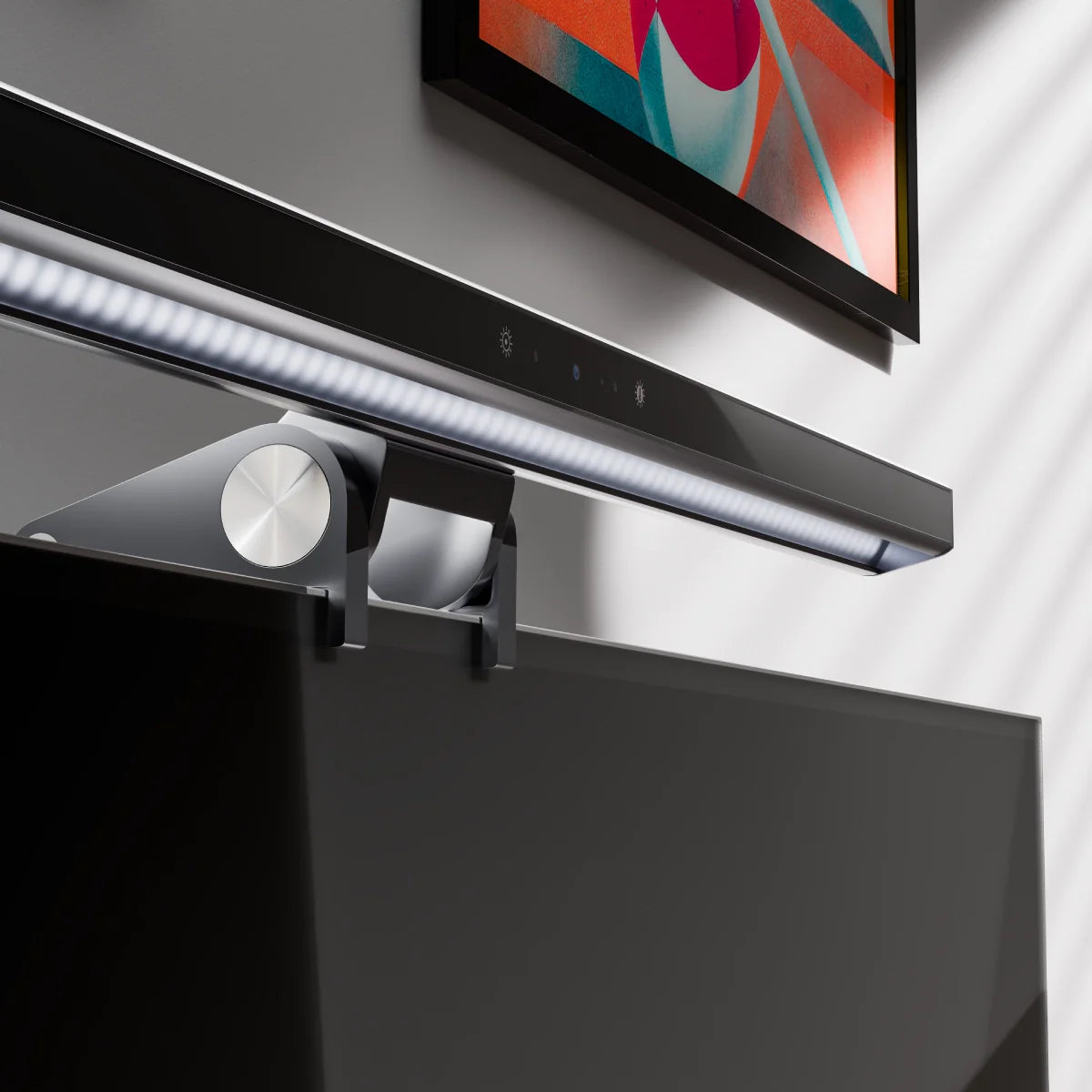

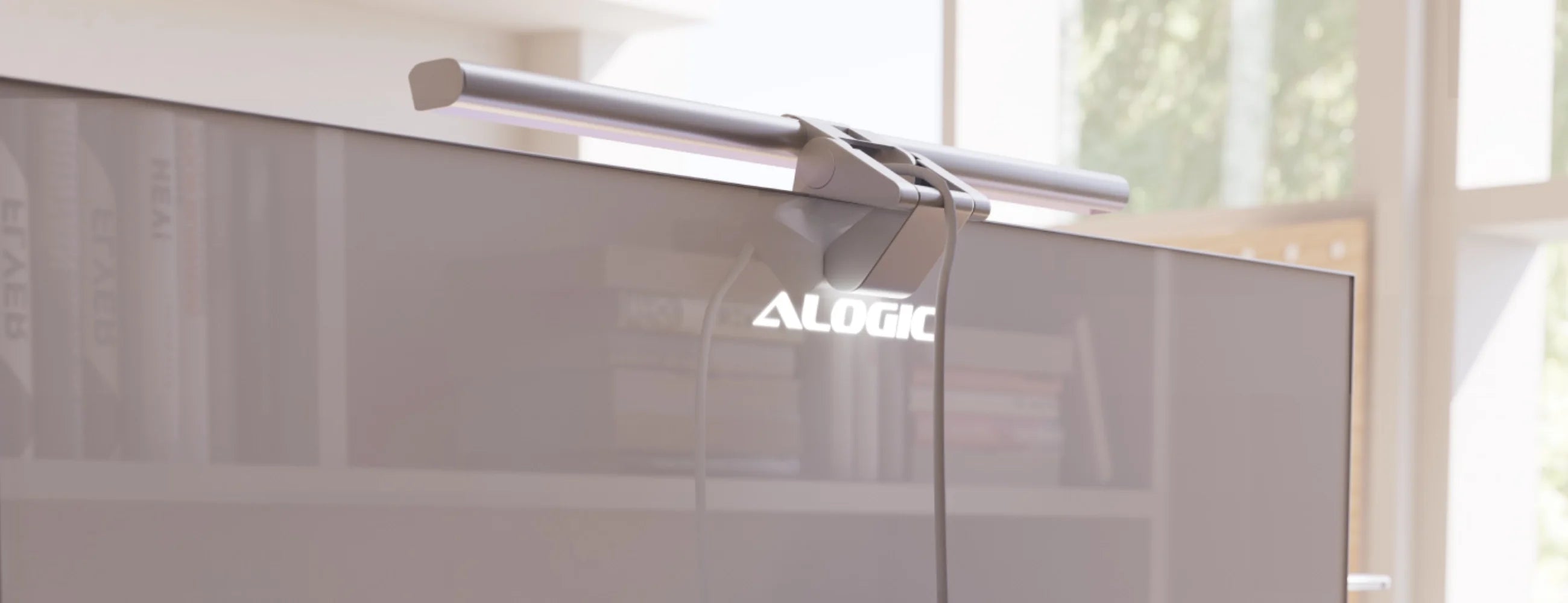

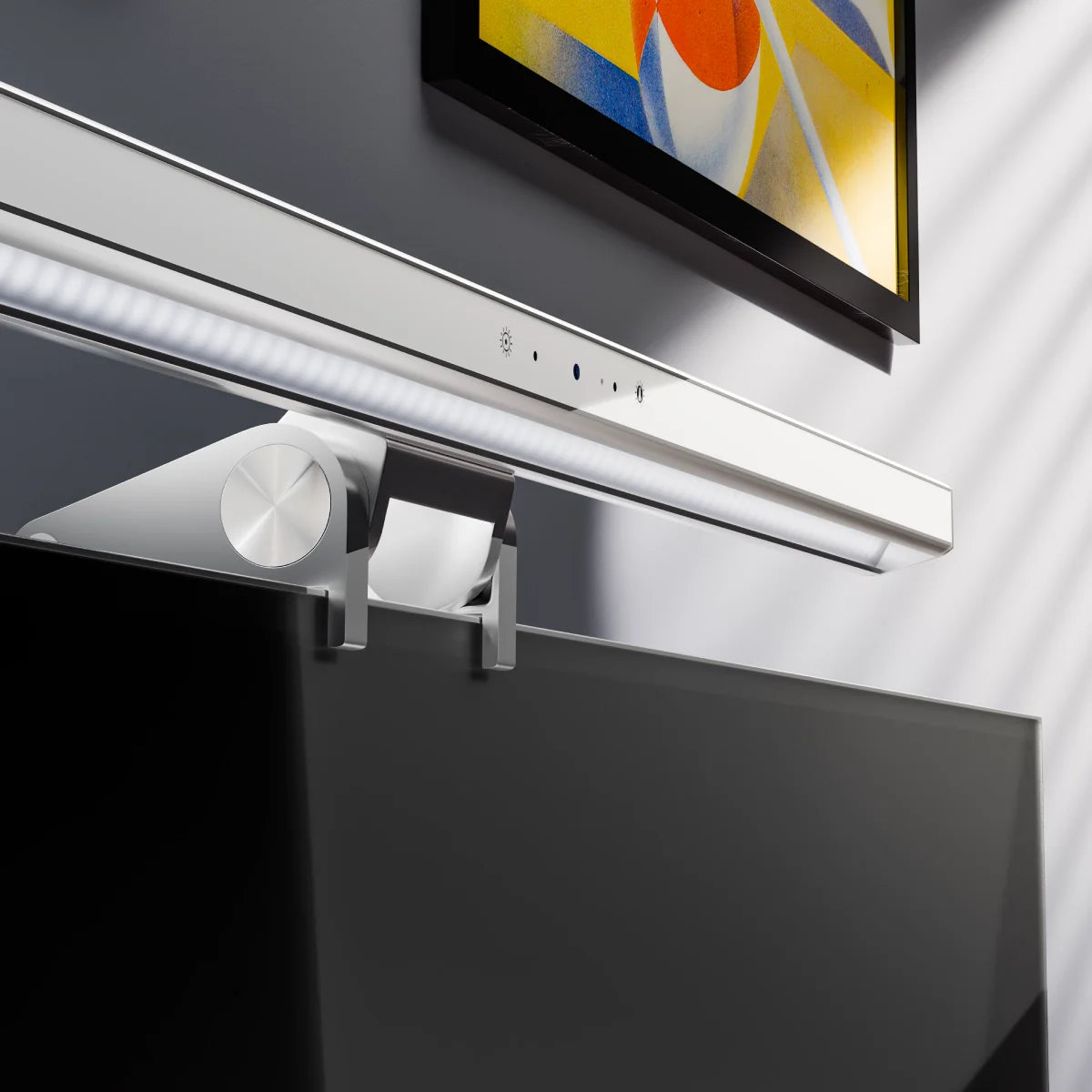

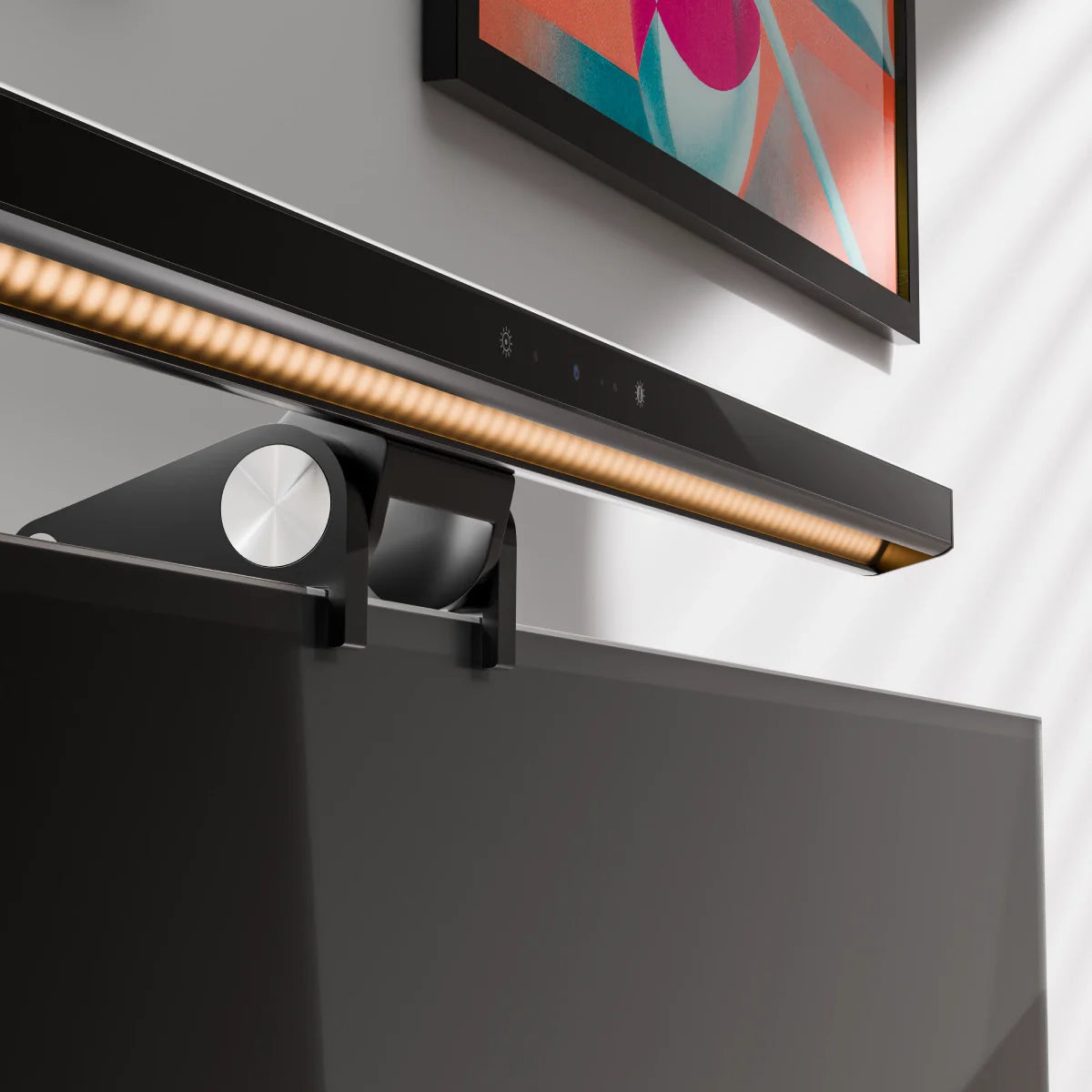

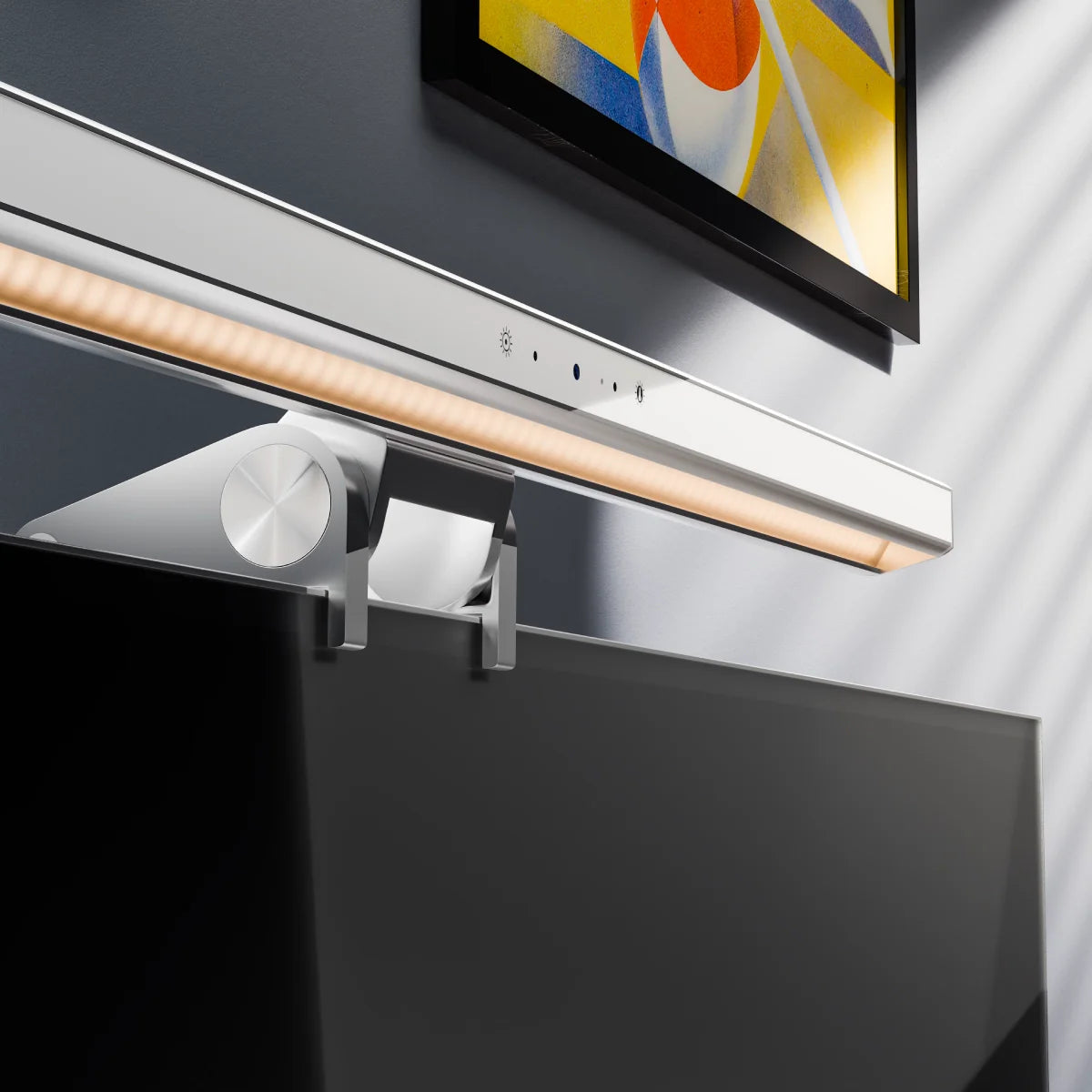

How do I attach the light bar to my monitor and turn it on?

1. Open the Light Bar’s clamp to allow for fitment over your monitor.

2. Position Illuminate’s Support Feet at the front of your screen and fold the Clamp towards the monitor until the Light Bar is stable. Illuminate supports screens 8-30mm thick.

3. Connect the Light Bar’s USB-C Port to your monitor’s USB accessory ports (with at least 5W power output) or your laptop.

4. Tap the Power Button to switch the light on or off.

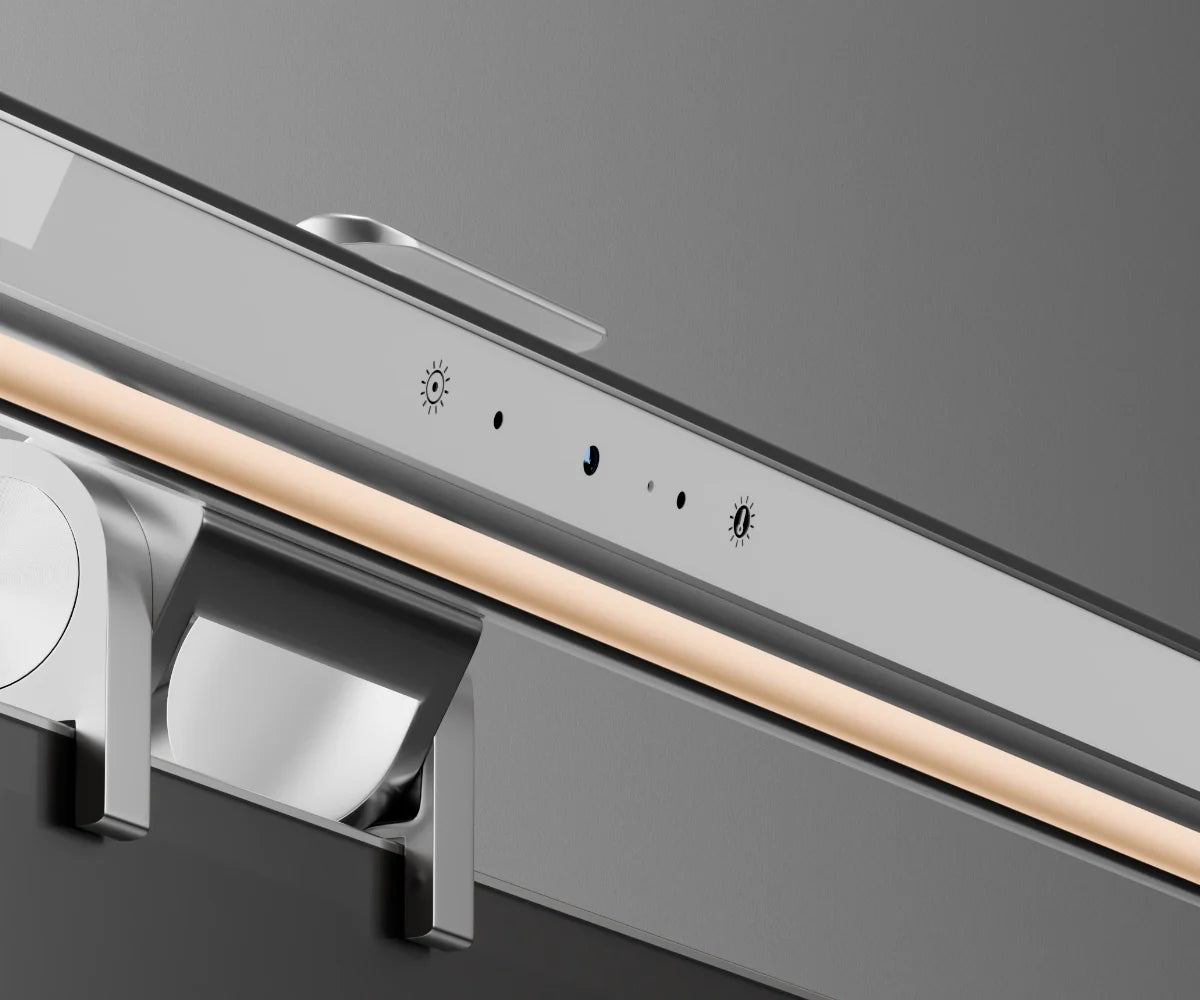

How do I adjust the light’s colour temperature?

1. To adjust the brightness, tap and hold the Power/Brightness Button.

2. To change the colour temperature of the light, tap the Colour Temperature Button.

3. Press to adjust colour temperate between fixed levels 2800k - 4500k - 6500k.

4. Press & hold to ramp colour temperature up/down.

How do I use the remote control?

1. Connect the Remote Dial’s USB-C Input to a USB power source to charge it.

2. Tap and hold the Power Button and Mode Button for a second to turn the dial on. The dial will automatically go into standby after 20 seconds of inactivity.

3. Tap the Power Button again to switch the Light Bar on or off.

4. Move your finger across the Adjustment Bar to adjust the Brightness.

5. Tap the Mode Button to switch the dial between colour mode and brightness mode. The Adjustment Bar will now change the LED Light from Cool to Warm

How do I set up Illuminate’s webcam?

1. Once connected to your computer via USB, Illuminate’s webcam should be automatically available in any application that requires it.

2. Illuminate will auto focus on objects within 30cm-3m of the webcam.

3. For privacy, place the Magnetic Privacy Cover on top of the webcam when not in use.

4. The camera status LED will illuminate when the camera is currently in use.
